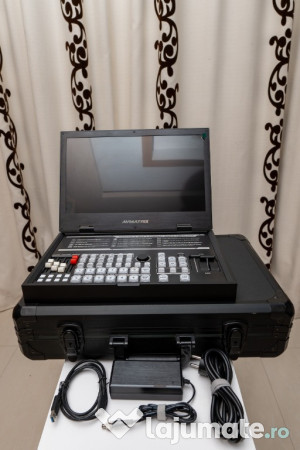

Avmatrix PVS0615U Switcher Portabil cu 6 Canale cu Display de 15.6"

Avmatrix PVS0615U Switcher Portabil cu 6 Canale cu Display de 15.6"

Foarte putin folosit. Inca are folia de protectie pe display.

Caracteristici generale

Conectivitate
Tally GPIO
LAN RJ45 x 1, sincronizati ora locala
Iesiri audio analog 3.5 mm stereo audio x 1, RCA (L/R) x 1
Iesiri Multiview HDMI tip A x 1
Iesire AUX (PVW / PGM) HD / 3G-SDI x 1
Iesire PGM Streaming USB 3.0 (Tip C) x 1
Iesiri PGM HD / 3G-SDI x 2, HDMI tip A x 2
Intrari audio analog 3.5 mm stereo audio x 1, RCA (L/R) x 1
Intrari video SD / HD / 3G-SDI x 4, HDMI 2.0 tip A x 2
Standarde 625i 50 PAL, 525i 59.94 NTSC
Captura USB Compatibil cu USB 3.0 si USB 2.0,
Conformitate cu SDI SMPTE 292M / SMPTE 259M / SMPTE 424M
Iesire Multiview HDMI 1080p 60
Iesire scalata SDI & HDMI 1080p 60/50/30/25/24, 1080i 60/50
576i 50, 576p 50
720p 60/59.94/50/30/29.97/25/24/23.98
1080p 60/59.94/50/30/29.97/25/24/23.98/23.976; 1080i 50/59.94/60
Suport Format de intrare HDMI 4K 60/50/30; 2K 60/50/30
720p 60/59.94/50/30/29.97/25/24/23.98
1080i 60/59.94/50
1080psF 30/29.97/25/24/23.98
Suport Format de intrare SDI 1080p 60/59.94/50/30/29.97/25/24/23.98

Alimentare
DC 12V, 2A, 24W
Alte caracteristici
Tranzitii si Efecte T-Bar manual / AUTO / CUT, Wipe / Mix/ Fade / FTB / Color Bar
Streaming Capteaza necomprimat pe USB Type-C, in conformitate cu UVC & UAC
Mixer Audio Following / Mixing
Layouts Luma Key/ Chroma Key / PiP / PoP / Multiview
Dimensiuni 375 mm x 271.5 mm x 43.7 mm
Temperatura de depozitare-30°C - 70°C
Temperatura de operare Intre -20°C si +60°C
Sursa de alimentare DC 12V, 2A, 24W
Ecran LCD 13.3 inch FHD IPS; rezolutie 1920 x 1080
Greutate 4 kg
