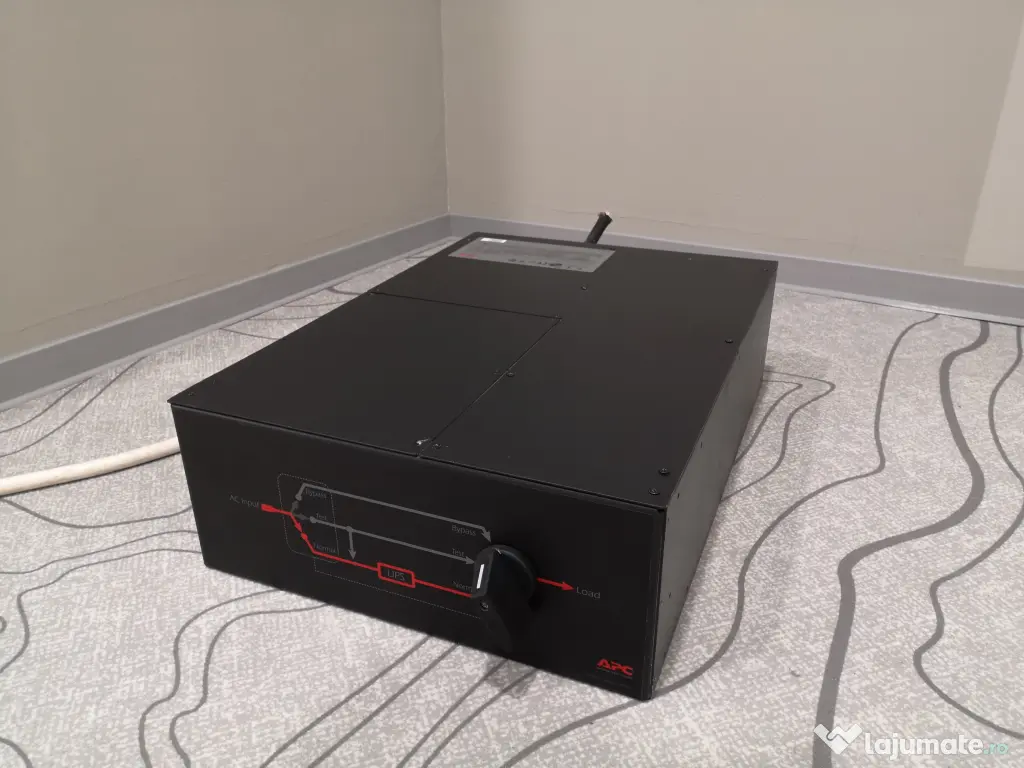

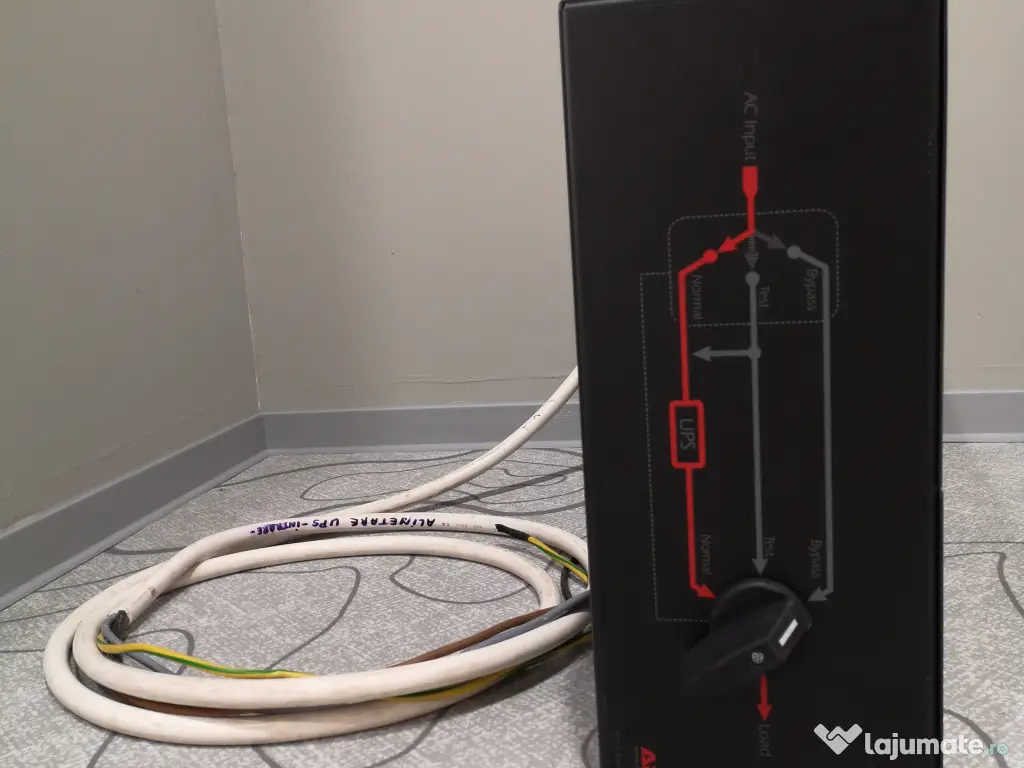

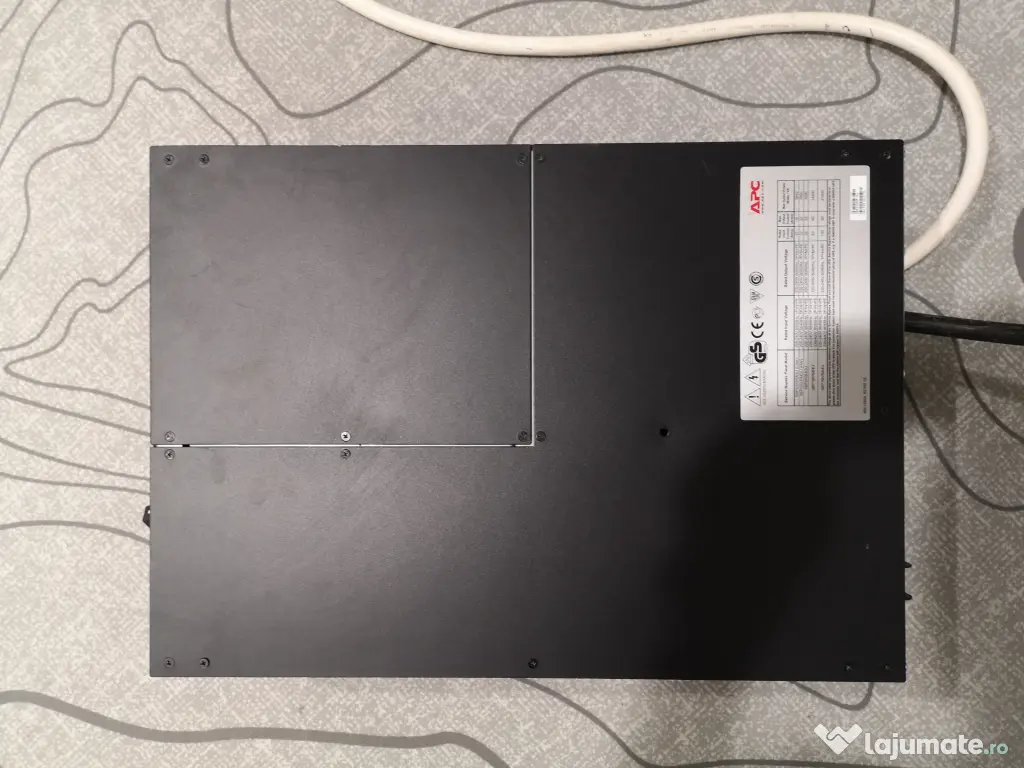

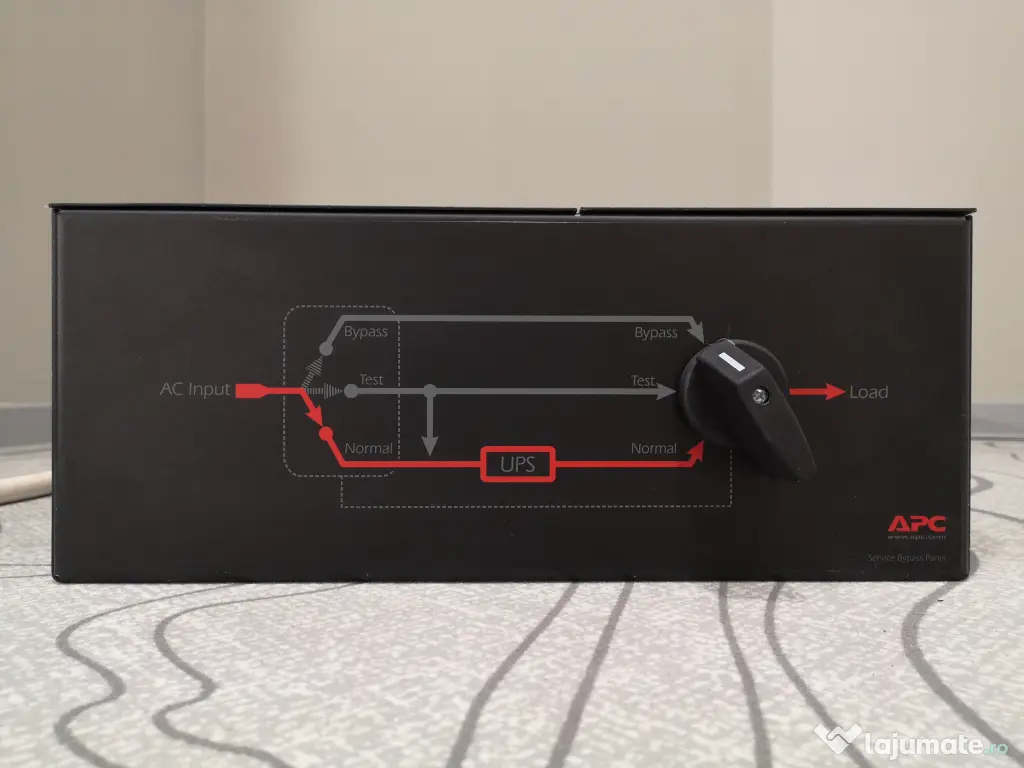

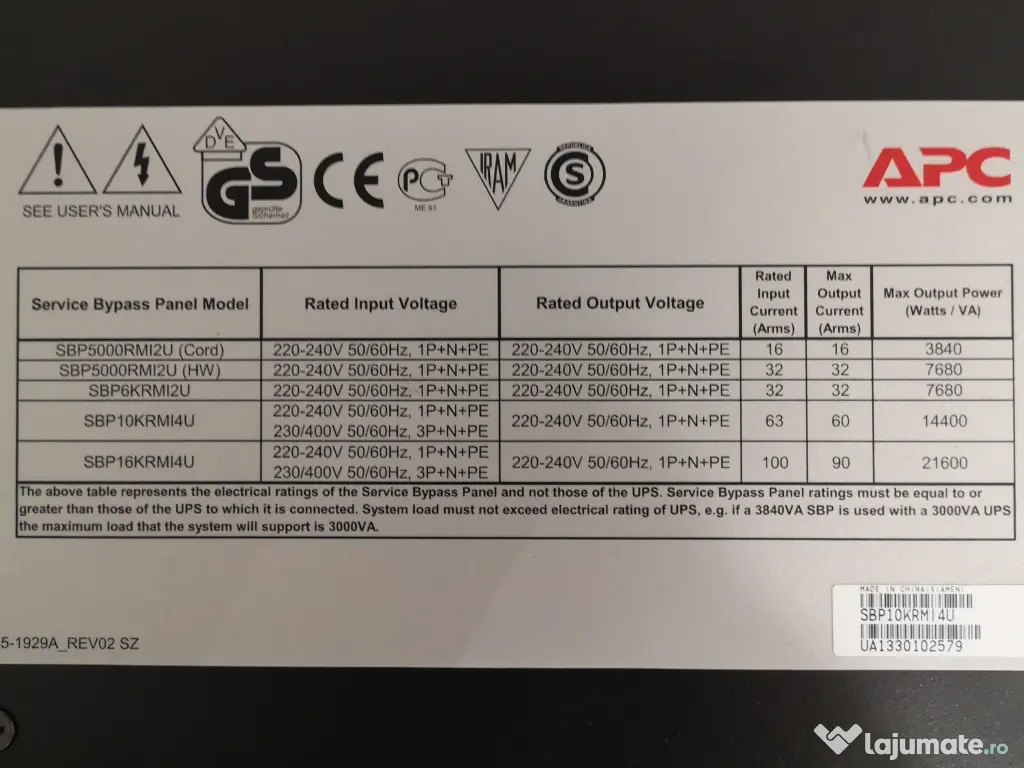

Panou bypass APC SBP10KRMI4U

Specificatii de pe pagina producatorului Schneider Elecric

Main:

• main Input Voltage 230 V
• product or component type Bypass kit
• main Output Voltage 230 V
• number of rack unit 4U
• number of cables 1
• provided equipment Installation guide
• rack mounting brackets
• user manual
• range of product Maintenance Bypass Panels

Physical:

• colour Black
• height 178 mm
• width 432 mm
• depth 673 mm
• net weight 20.91 kg
• mounting location Front
• mounting preference Lower
• mounting mode Rack-mounted

Input:

• network frequency 50/60 Hz

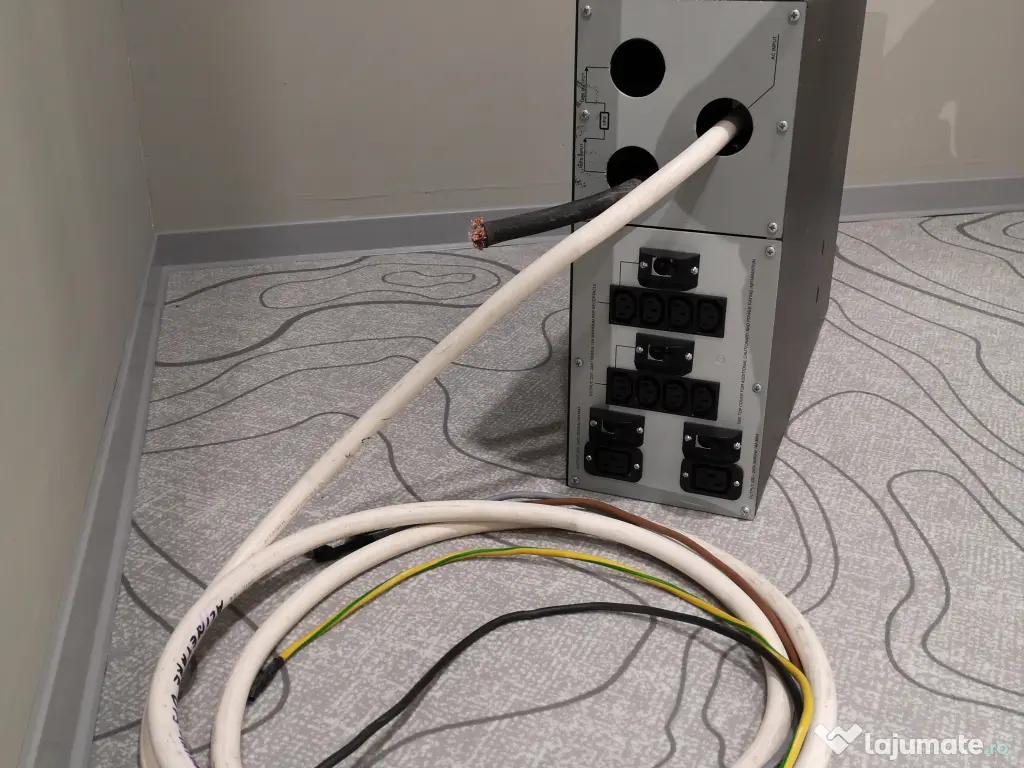

• number of input connectors 1 hard wire 3-wire (1P + N + E)

1 hard wire 4-wire (3P + N)

• max line current 100 A
• input current limits 100 A
• load capacity 20000 VA
• power factor 0…1

Output:

• max current draw 100 A

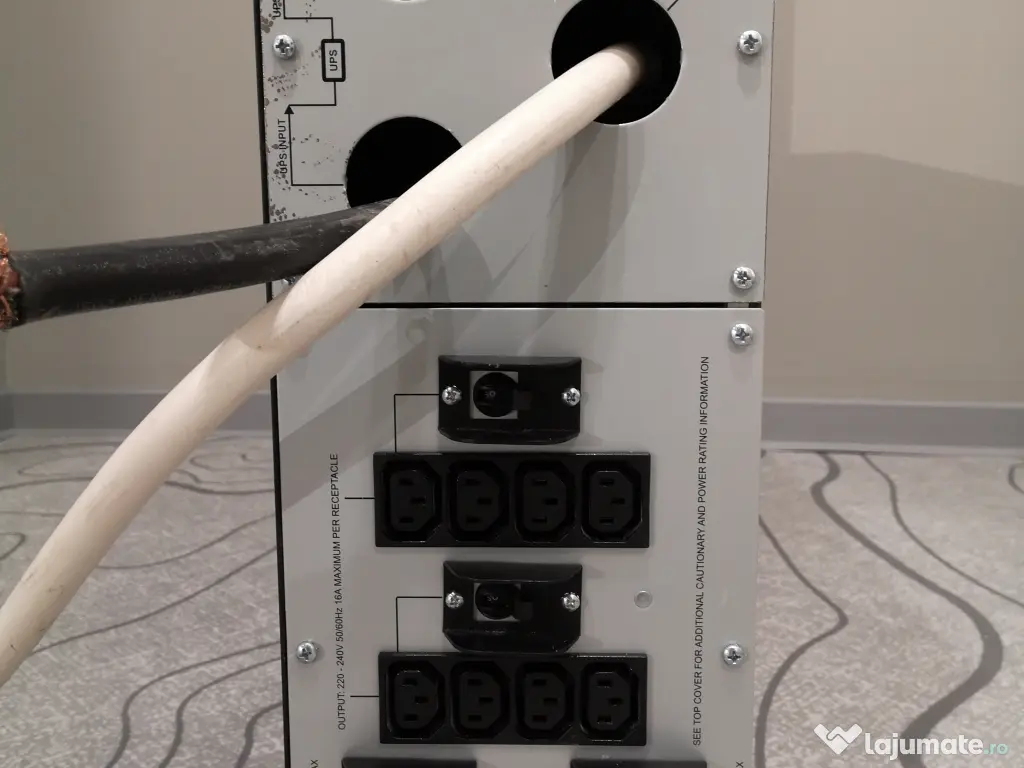

• number of power socket outlets 8 IEC 60320 C13

2 IEC 60320 C19

• protection type Circuit breaker
• efficiency 99 %
• conformance:
• product certifications CSA

GOST

• standards EN/IEC 62040-1:2019/A11:2021

EN/IEC 62040-2:2006/AC:2006

EN/IEC 62040-2:2018

Environmental:

• ambient air temperature for operation -20…50 °C
• relative humidity 0…95 %
• operating altitude 0...15000 ft
• ambient air temperature for storage -40…65 °C
• storage Relative Humidity 0…95 %
• storage altitude 0…15240 m
